- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 7'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 130 W
- Frequency Response @ -6 dB: 40 Hz - 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
Fuld beskrivelse
A NEW INDUSTRY STANDARD
The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.
DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.
Video
Specifikationer
-
General Data
-
- Display: Front panel multi-colour LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing
- Weight: 8.7 kg (19 lb 3 oz)
- Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
- Audio Input Connectors
-
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
- Amplification
-
- Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 110 W
- RMS (1% THD, limiter deactivated): 90 W
- Tweeter
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 20 W
- RMS (1% THD, limiter deactivated): 15 W
- Woofer
- Control Options [via Network]
-
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
- Acoustics
-
- Frequency Response @ -3 dB: 44 Hz – 41 kHz
- Frequency Response @ -6 dB: 40 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
- Crossover Frequencies: 2.8 kHz
-
Drivers
-
- Woofer
- Basket Diameter: 7″
- Voice Coil Diameter: 1.3″ (33 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical
- Woofer
- Signal Processing
-
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

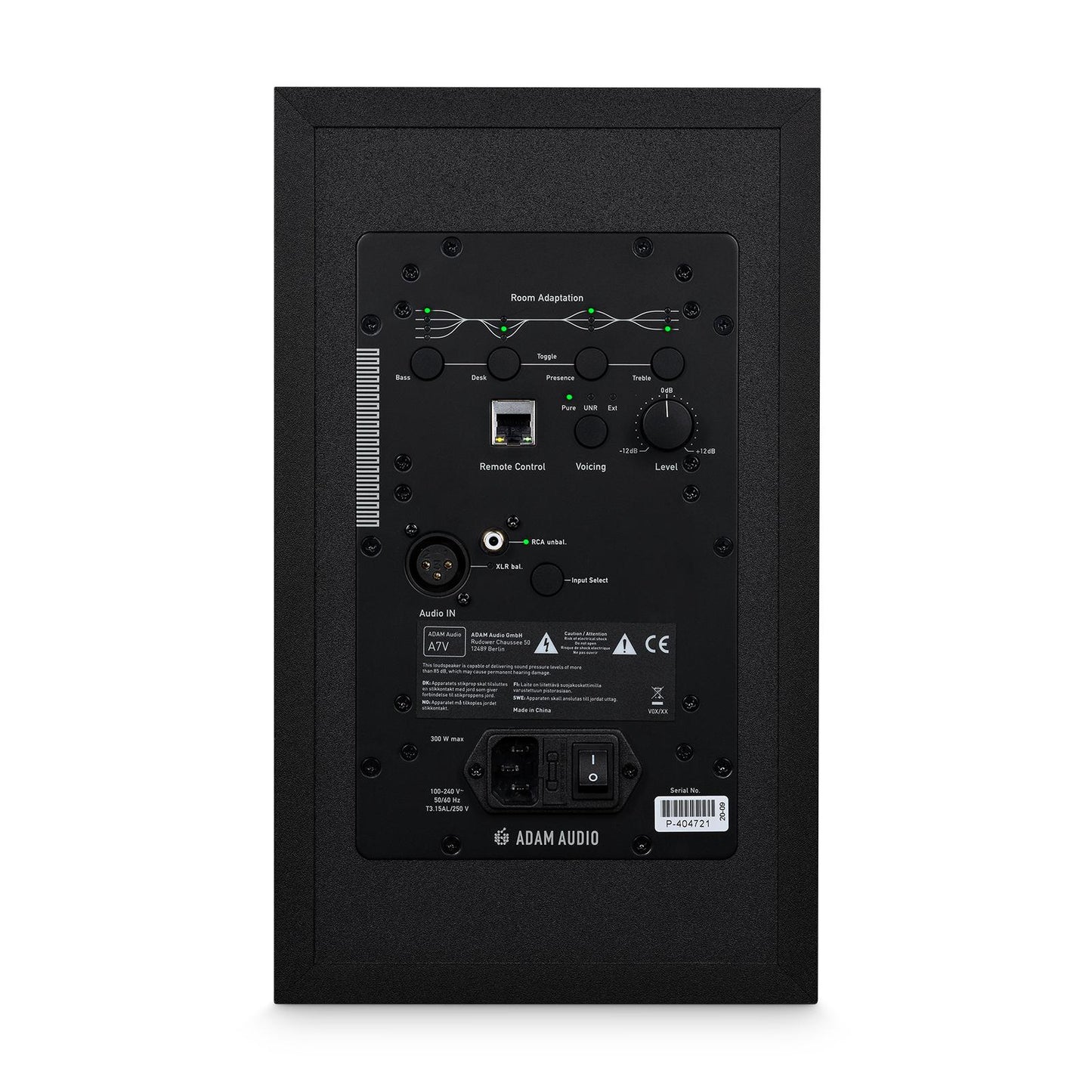

- Control Options [via Backplate]
-
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
