Varenummer (SKU):DD-500
Ny generation af avanceret delay-pedal med enestående lydkvalitet og enorm kreativitet.
Highlights
- Studie-level stereolyd med 32-bit/96 kHz processing hele vejen igennem.
- 12 alsidige delay-modes fra vintage til modern giver uendelige kreative muligheder
- Real-time expression med skræddersyede kontrolindstillinger for onboard og eksterne switches
- Grafisk LCD for enkel, intuitiv betjening under performance og editering
- Onboard patch memories og hands-on controls
- Indbygget Phrase Looper, MIDI, USB og mere
- Skift mellem buffered eller true-bypass betjening
- Runs on four AA-size batteries or PSA-series AC adapter
Fuld beskrivelse
Fantastisk lyd og kreativ power
DD-500 er spækket med nyudviklet BOSS-teknologi og er vores mest powerfulde og alsidige delay effektpedal nogensinde. Denne lydskabende toolbox giver dig 12 karakteristiske delay-modes med super lydkvalitet og omfattende editeringsmuligheder, et grafisk display, patch memories, MIDI og meget mere. DD-599 får fra almindelig echo til præcise emuleringer af klassiske delays og lækre spatialteksturer.
Specifikationer
Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Delay Modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX
Maximum delay time
10 sec.(depends on delay mode)
Phrase loop
60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.
Patches
198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Pedals
Foot switch x 3 [A][B][TAP/CTL]
Knobs
MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH
Display
Graphic LCD (128 x 64 dots, backlit LCD) x 1
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +8 dBu
Input Impedance
INPUT A/MONO, B: 1 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +8 dBu
Output Impedance
OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 20 k ohms or greater
Bypass
Buffered bypass or True bypass (with relays)

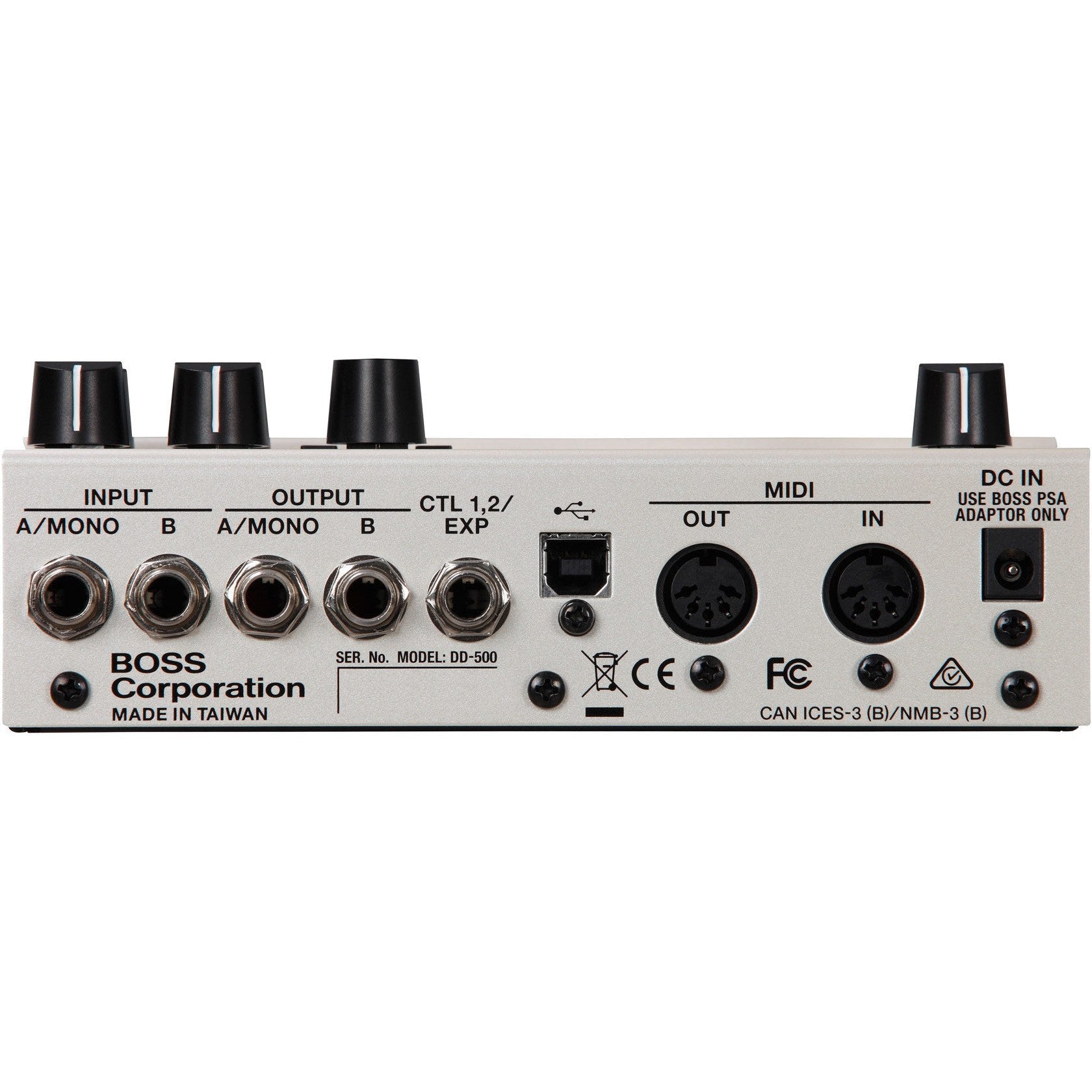

Connectors
INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack
Power Supply
Alkaline battery (AA, LR6) x 4AC adaptor
Current Draw 200 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 7 hours
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately)
AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5
SIZE AND WEIGHT
Width 170 mm6-3/4 inches
Depth 138 mm5-7/16 inches
Height 62 mm2-1/2 inches
Weight (including battery) 1.0 kg2 lbs 4 oz.
